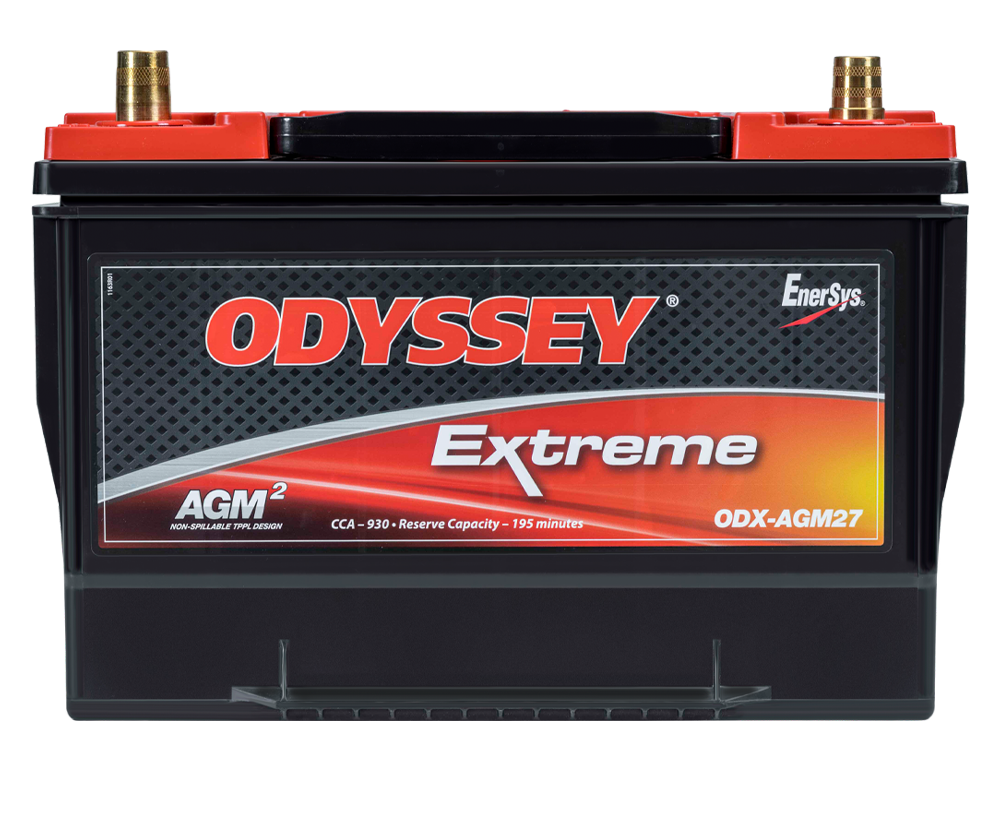

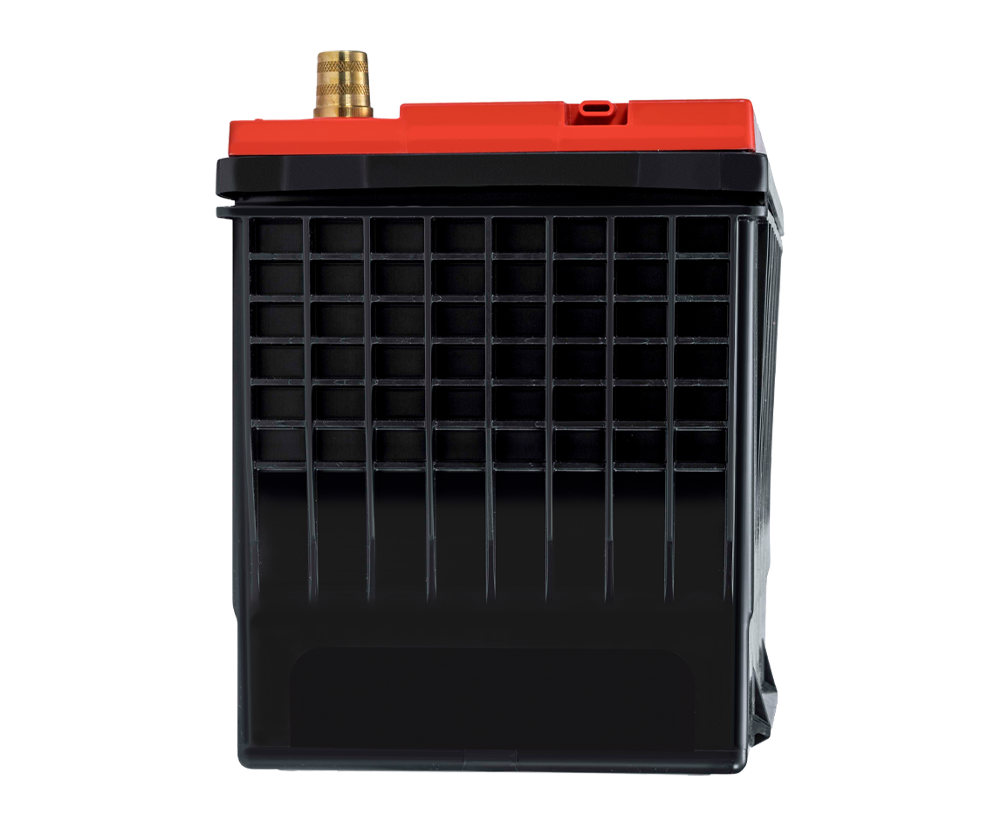

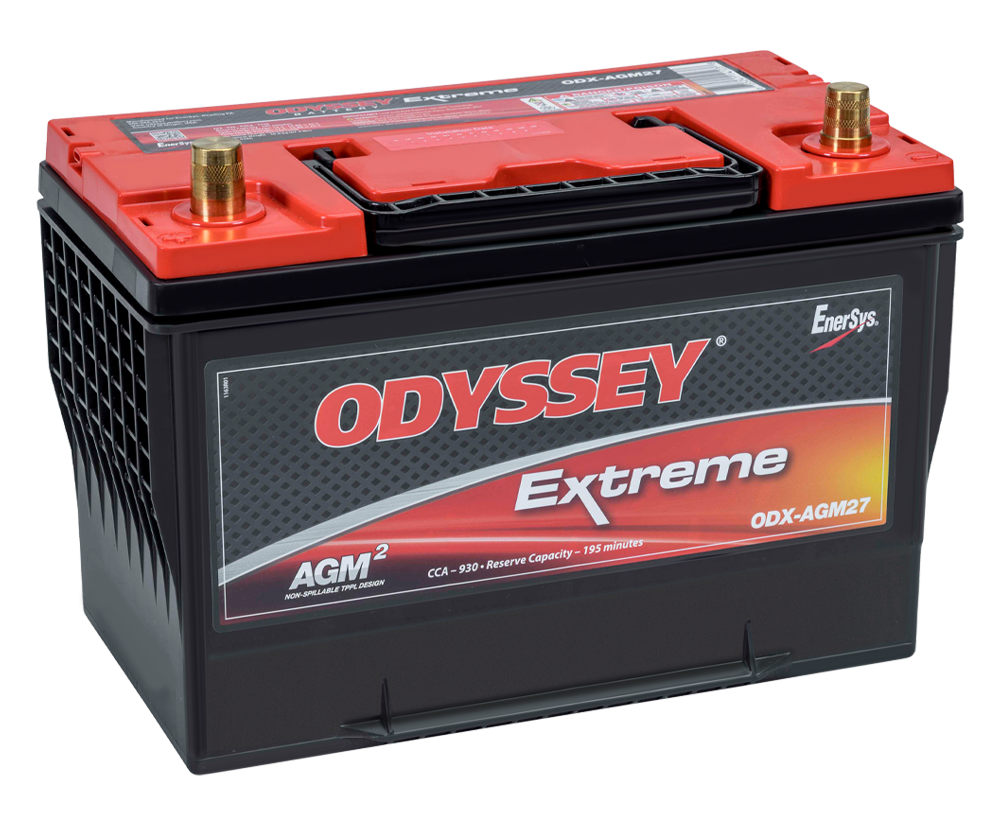

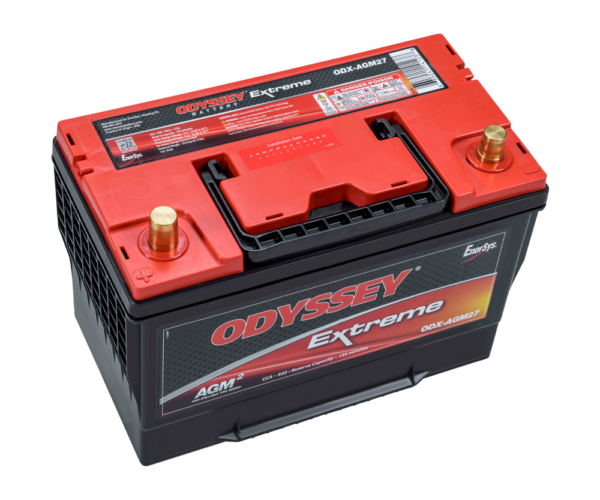

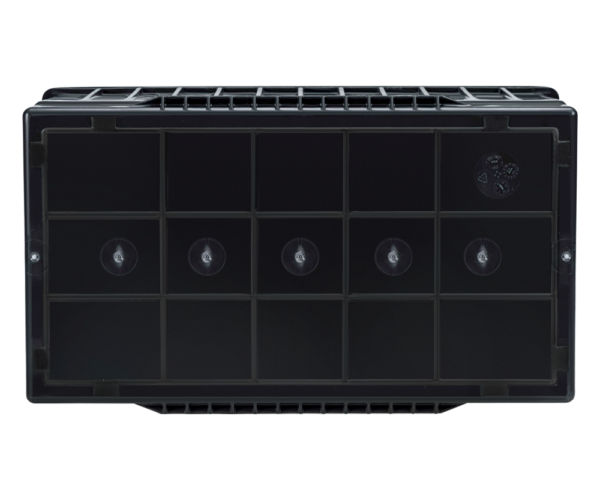

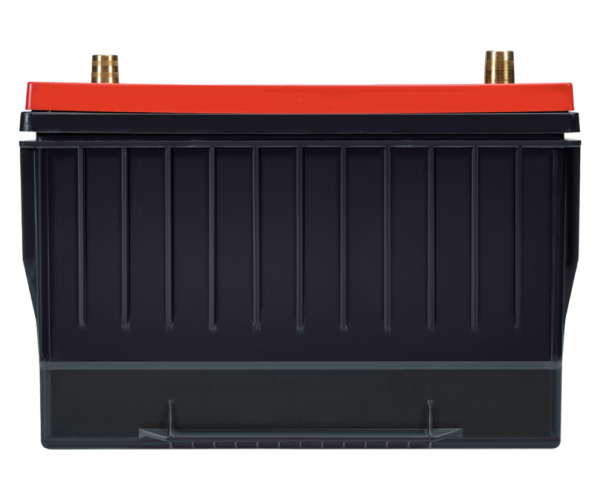

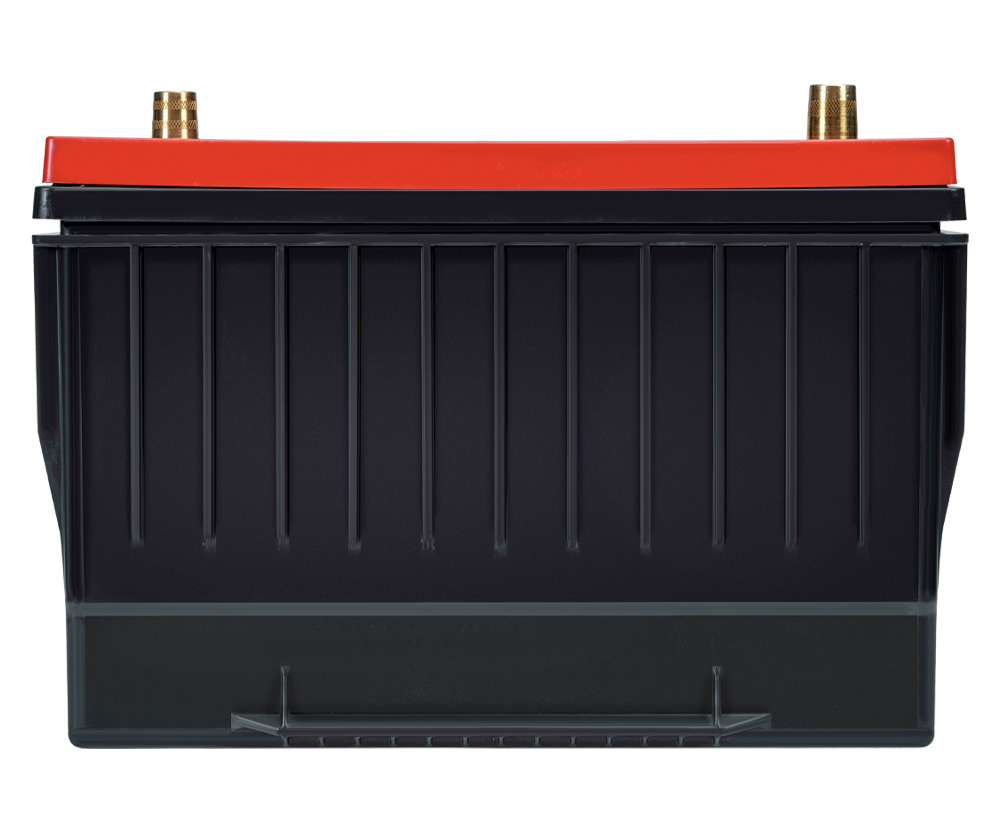

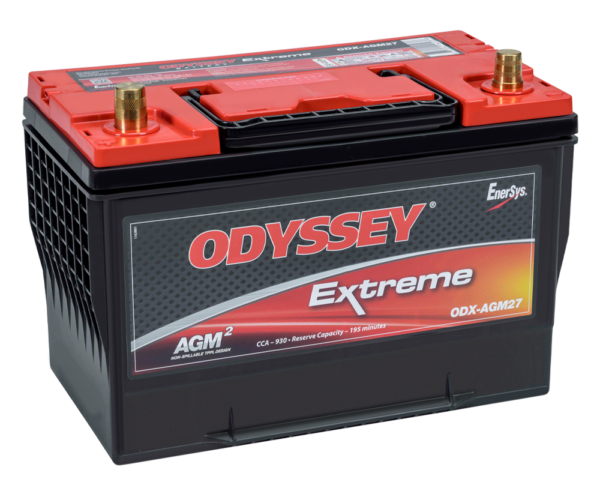

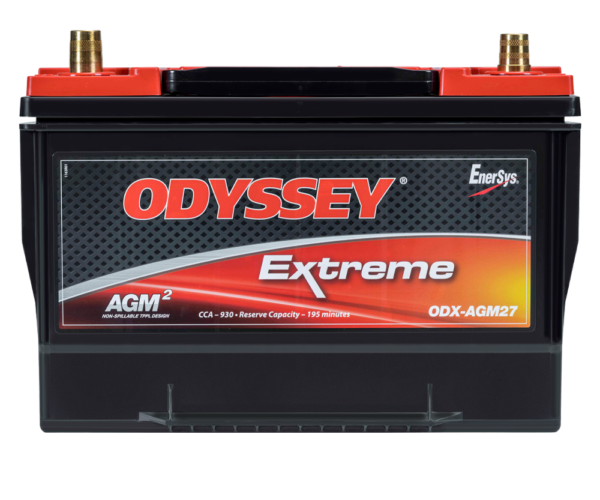

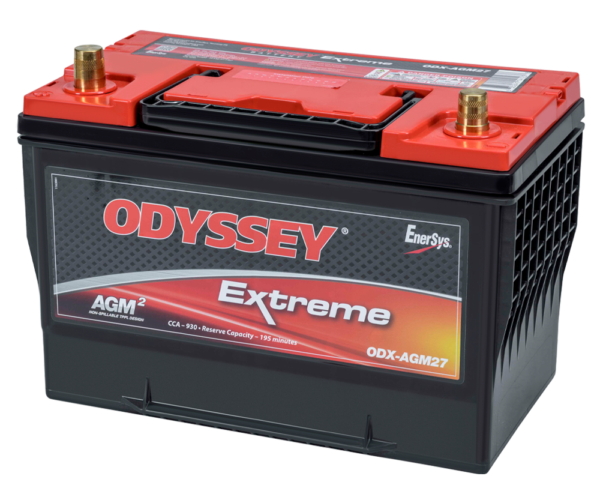

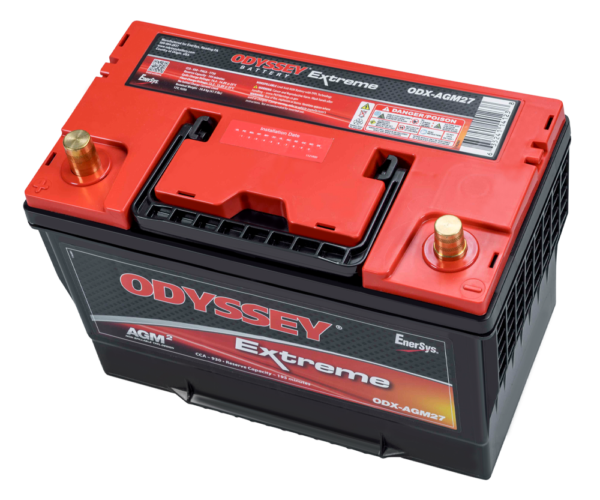

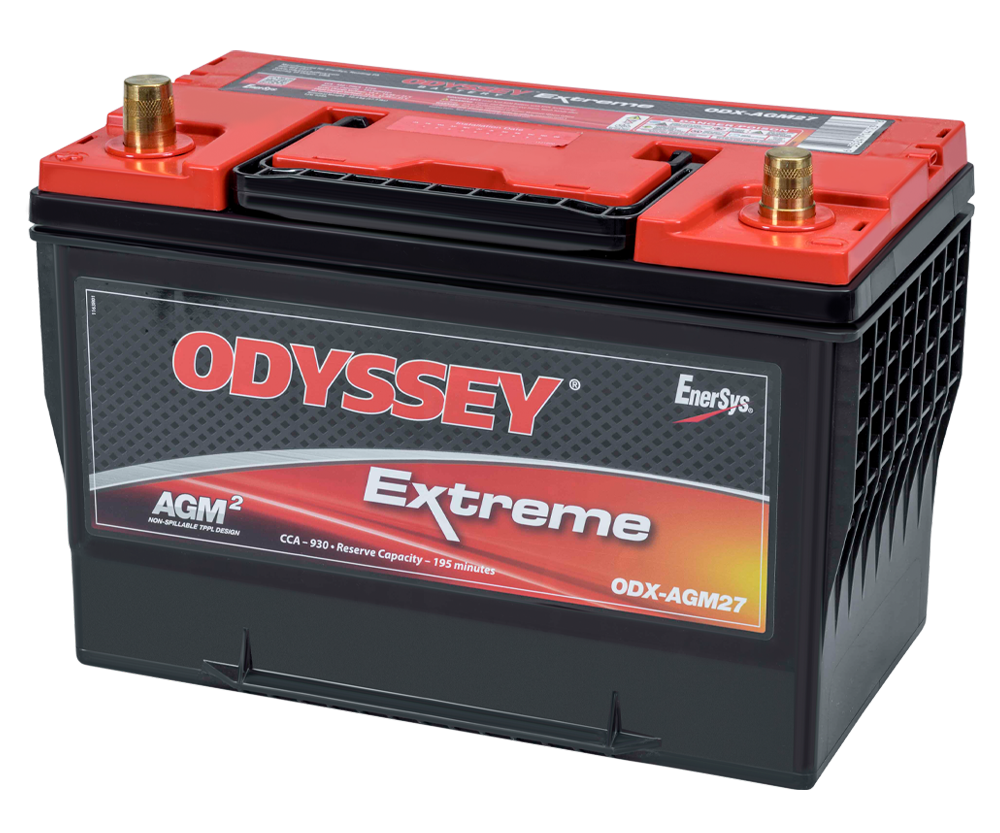

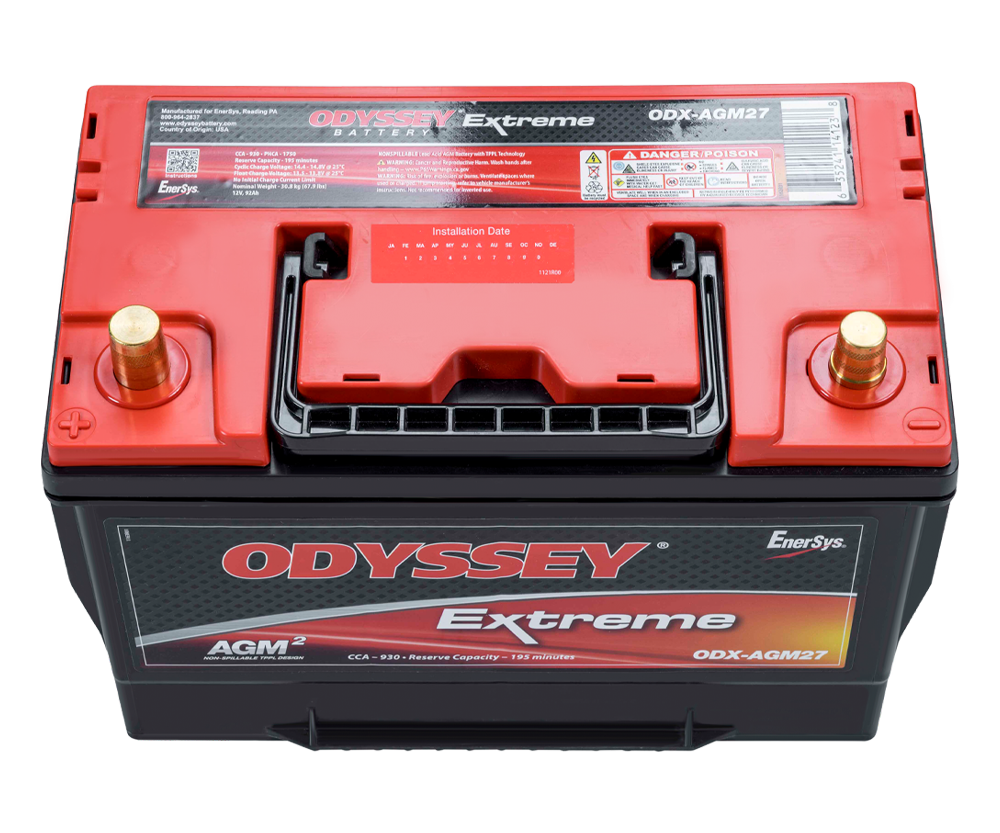

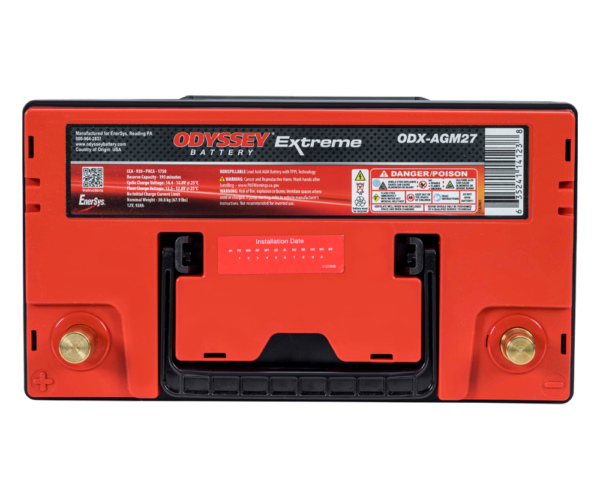

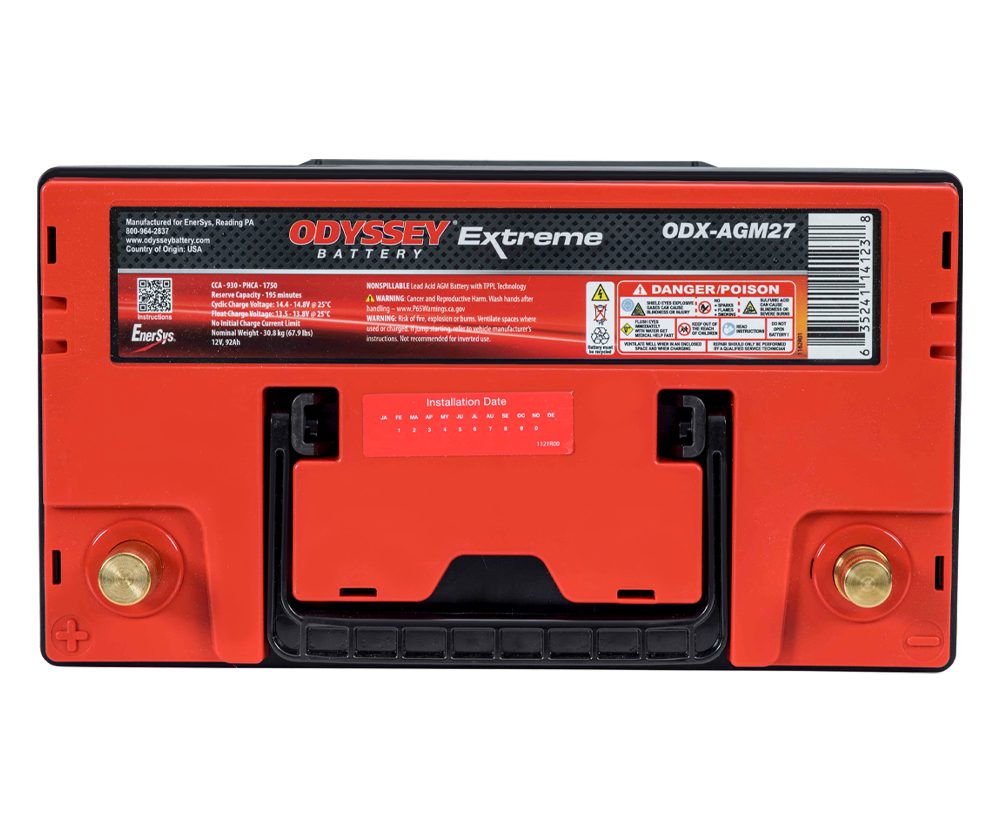

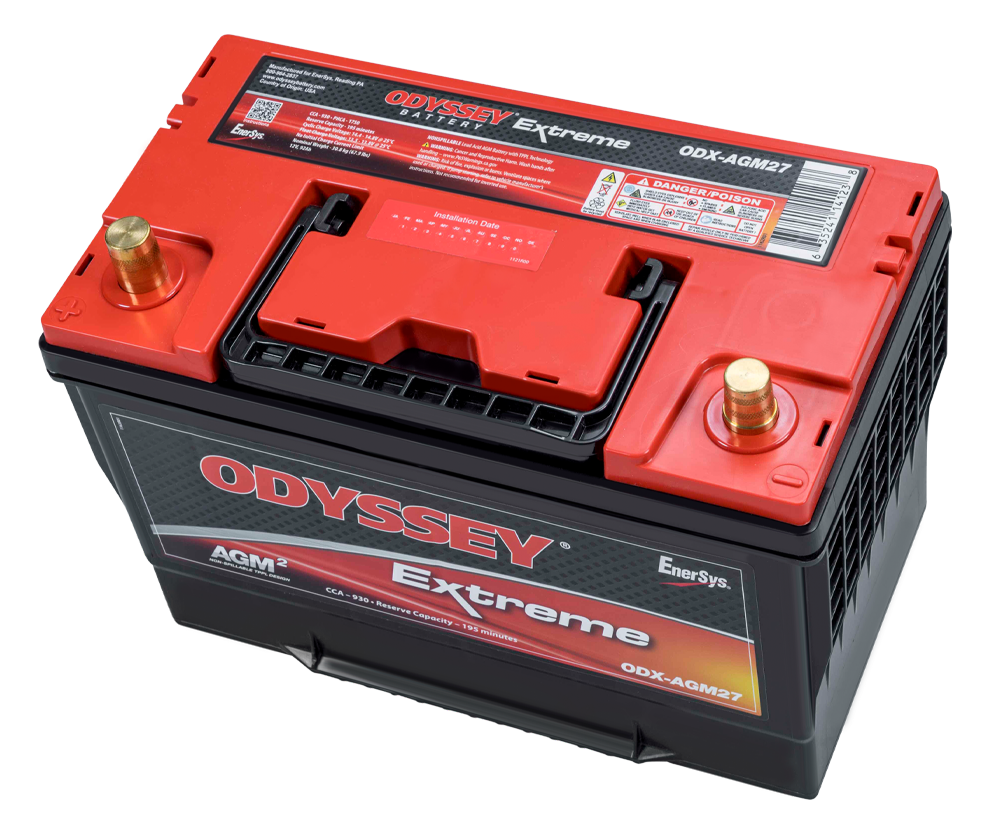

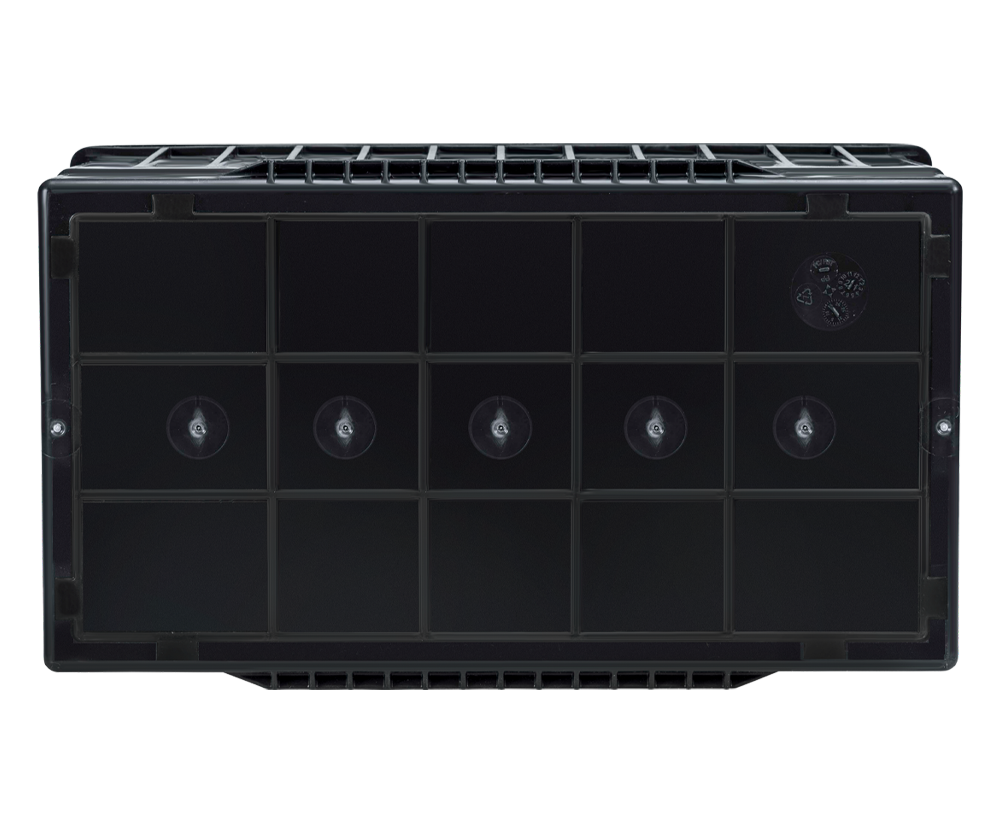

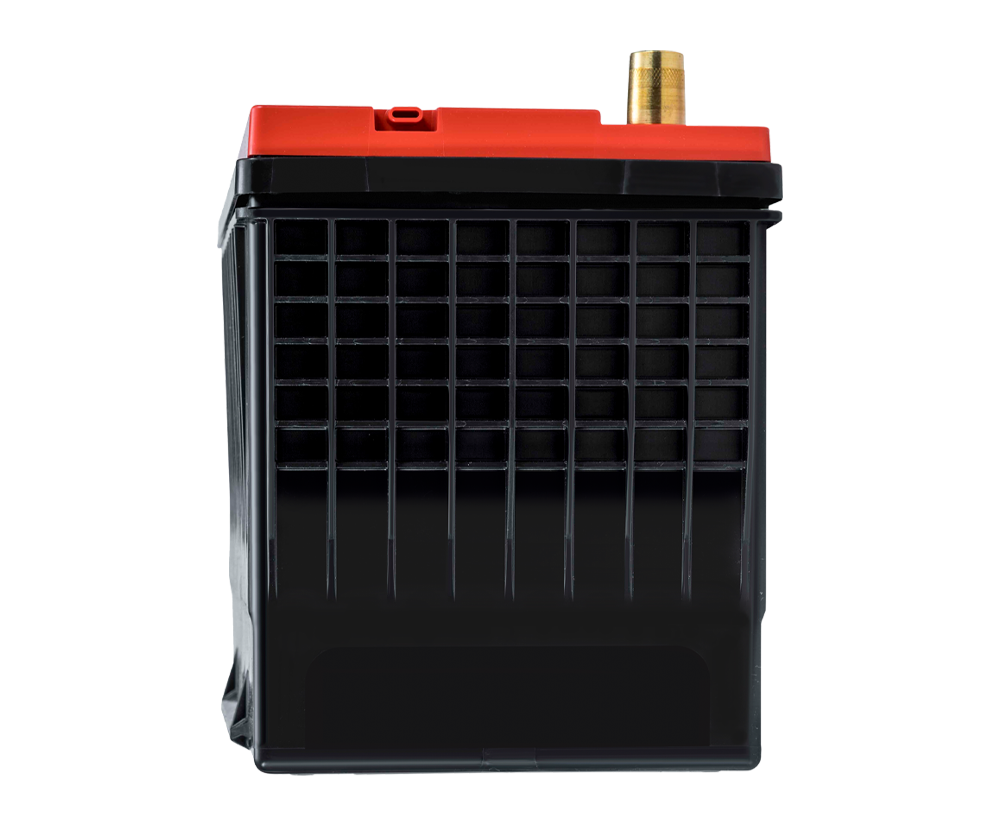

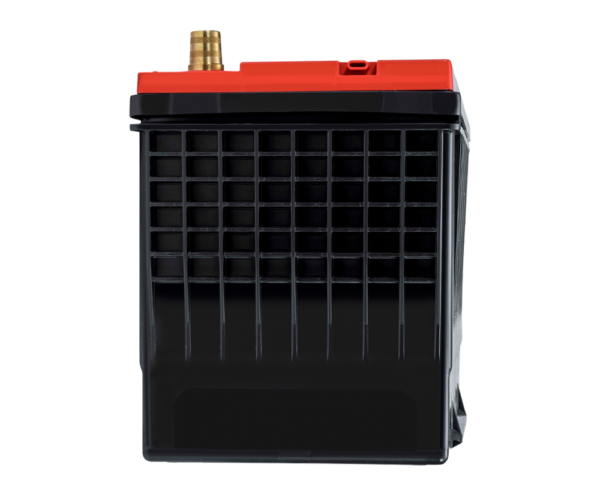

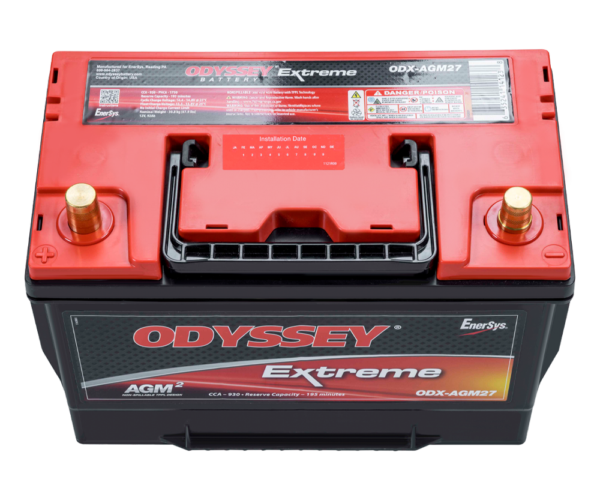

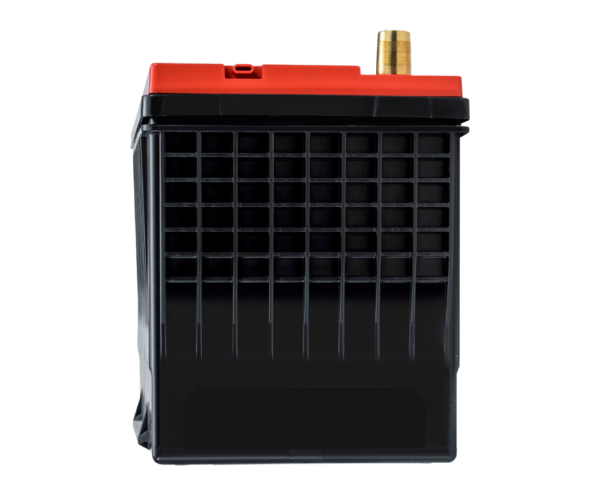

ODYSSEY Extreme Battery

ODX-AGM27

(NSB-AGM27)

SAE Metric

Voltage

Pulse (5 second) Hot Cranking Amps (PHCA)

1750

Cold Cranking Amps (CCA)

930

HCA

1290

MCA

1080

20Hr Nominal Capacity (Ah)

10Hr Nominal Capacity (Ah)

Reserve Capacity Minutes

195

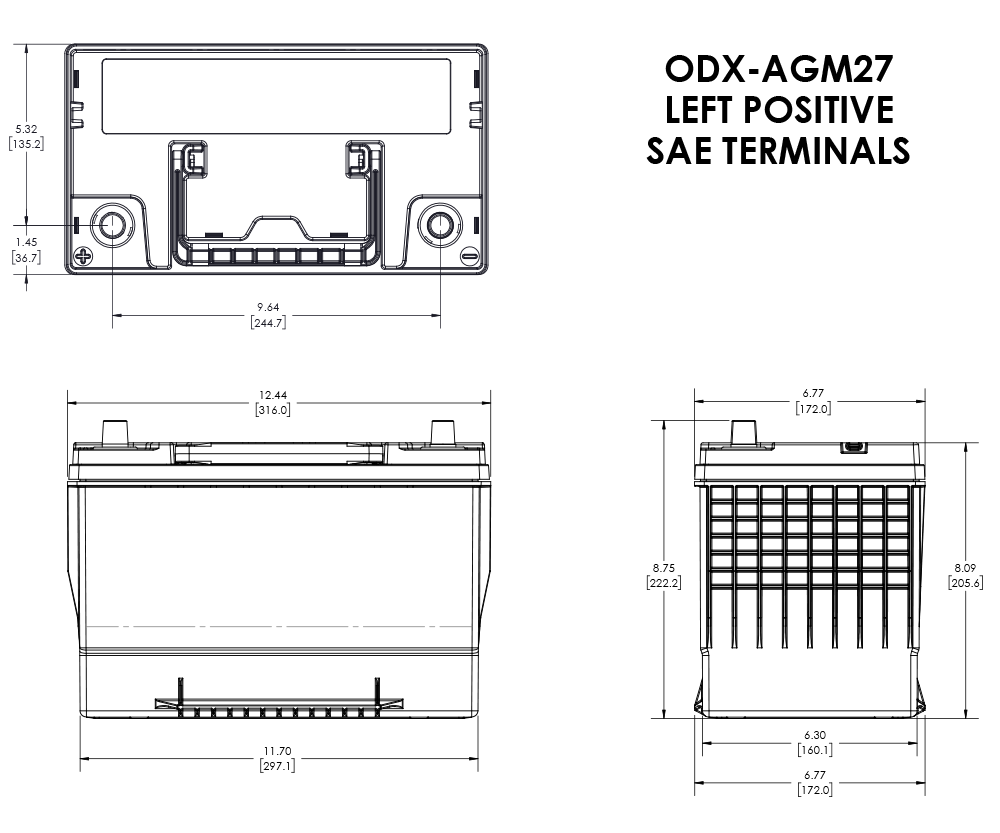

Terminal

SAE

Torque Spec in-lbs (Nm max)

N/A

Internal Resistance (mΩ)

2.6

Short Circuit (A)

5000

Recommended Min. Charging Current (A)

8.8

Operating Temperature Range

-40°F / -40°C to 176°F / +80°C

Optimum Storage Temperature

68°F / +20°C

UPC	635241141238
